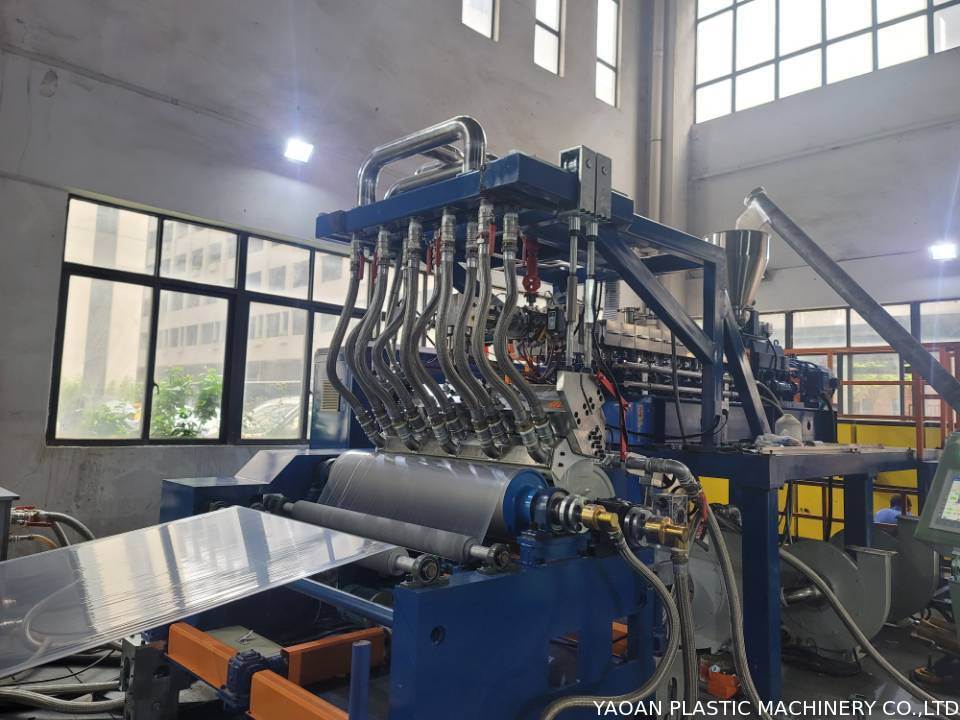

YAOAN PP Cast Film Extrusion Line adopts an industry-leading modular architecture design,
which can flexibly switch between single-layer/three-layer co-extrusion modes according to
customers' production capacity requirements and product positioning. The width can be
precisely customized within the range of 1000mm-3000mm, and the film thickness covers the
full specification range of 0.015mm-0.20mm, perfectly meeting the diverse application
scenarios such as food packaging, daily chemical packaging, pharmaceutical packaging,
electronic component packaging, and composite substrates.
The core configuration of the equipment demonstrates its strong strength:
•Equipped with a high-precision variable frequency drive system, the operation stability error
is ≤±0.5%.
•Adopts an imported PLC intelligent control system with a 7-inch color touch screen,
enabling real-time monitoring and digital adjustment of production parameters
(temperature, pressure, speed, thickness) for convenient and efficient operation.
•All core components undergo precision processing and rigorous testing: the screw is made
of 38CrMoAlA alloy material, with surface hardness reaching HV950 or above after nitriding
treatment (high wear resistance and long service life); the T-die is integrally processed with
high-quality mold steel, and the flow channel is optimized through hydrodynamic design to
ensure uniform melt flow; the die lip is equipped with a micron-level adjustment
mechanism, controlling film thickness deviation ≤±3%.
The production line runs through a closed-loop process of raw material pretreatment -
precision plasticization - uniform casting - precise cooling - stable traction - online
detection - accurate slitting - finished product winding, with strict quality control standards
integrated into each step:
1. Raw Material Pretreatment Stage
•Equipped with automatic feeding system and raw material drying device: drying
temperature 80-100℃, drying time 2-4 hours, moisture content of PP raw materials ≤0.02%
(avoids bubbles in melt, ensures film surface smoothness and structural compactness).
•For three-layer co-extrusion products: independent raw material silos realize synchronous
supply of different formula raw materials to meet functional layering needs.
2. Precision Plasticization Stage
•Single-layer line: single-screw extruder (length-diameter ratio 30:1); three-layer line: three
independent extruders (main extruder L/D 32:1, side extruders L/D 28:1).
•Gradual compression ratio design + zone heating system (5-6 heating zones for barrel),
temperature control accuracy ±1℃.
•Melt pressure stabilized at 15-25MPa, avoiding material degradation and ensuring balanced
film mechanical properties.
3. Uniform Casting Stage
•Melt is accurately delivered to high-precision T-die via metering pump (flow error ≤±1%).
•Die lip width adjustable according to production width; electrostatic adsorption device (30-
50kV) ensures melt closely adheres to cooling roll surface (eliminates wrinkles and bubbles).
4. Precise Cooling Stage
•Three-roll linked cooling system: cooling roll surface roughness Ra≤0.2μm, temperature 18-
25℃.
•Thermal shrinkage control: longitudinal ≤3%, transverse ≤2% (improves film dimensional
stability).
5. Stable Traction and Online Detection Stage
•Double-station traction machine: rubber pressure roll + metal traction roll, traction tension
adjustable (5-20N) to avoid film stretching/deformation.
•Integrated online thickness measurement system (accuracy ±0.001mm) and defect
detection system (monitors pinholes, impurities, scratches, etc.), automatic alarm for
abnormalities, product qualification rate ≥99%.
6. Accurate Slitting and Finished Product Winding Stage
•High-precision circular knife slitting machine: slitting accuracy ±0.5mm (customizable
narrow rolls).
Winding machine: automatic tension control + deviation correction device (accuracy
±1mm), coil end runout ≤2mm (facilitates subsequent processing).
Three-Layer CPP Film Functional Design
Packaging and shipping
| PACKAGING |
plastic film + stretch film + wooden case + drying agent. |
| DELIVERY |
About 50 days (all new parts) |
| SHIPPING |
We place and fix the machines well into container and check carefully before closing the container so as to ensure everything is ok for the shipment. (Use steel wire to fix machine and drying agent).
We care each and every point so that our clients could receive the machines in perfect situation. |
What is our service system?
| PRE-SALE |
a. Detailed machine introduction;
b. Suggest suitable turnkey solution as per clients requirements;
c. Provide test production for reference; |
| IN PRODUCTION |
a. Supply layout drawing to clients for preparation;
b. Suggest suitable building project for pipelines, electric wiring, air pipes, cooling cycle water etc;
c. Keep the clients be informed ofthe production status; |
| AFTER SALE |
a. Send engineers to overseas for installation ,commissioning and training;
b. Supply extruding products' material formula, recommend excellent supplier of the raw material per clients' requests;
c. Offer help if any need from clients like spare parts need etc;
d. Supply necessary technical support at request;
|
Why choose YAOAN MACHINERY?
1. Profession: YAOAN only make plastic extruder since 1980s, extensive experience and professional team ensure our leading position in plastic extruder industry.
2. Quality: The quality of products is footstone of enterprise's constant development, always endeavoring to do still better, quality comes first, developing & innovative is our responsibilities;
3. Delivery: We optimize factory management, and improve production flow so as to shorten production period for you in biggest extent;
4. Cost control: We do best to lower down production cost by our inner management improvement, so as to ensure that our products are competitive enough in market, and to realize higher performance-price ratio of our products.
FAQ
Q1: What is the guarantee of the machine?
A1: The guarantee period of our machine is 12 months after the machine is installed well in buyer's factory;
Q2: What package do you use for the machine?
A2: Painted the machine with anti-corrosion oil, and then covered with plastic film, and then packed into wooden case or fixed onto wooden pallet as per clients' requirements, or shall be loaded into container with film packing. After fixed all machines, we will use drying agent to keep container inside dry.
Q3: Do you have instruction manual to guide us if i buy the machine?
A3: Yes, we supply detailed user manual for your reference. PLS read it carefully for guide. If there is still problem which could not be solved, PLS contact us, we are ready to help you anytime.
Q4: What is your service to overseas clients?
A4: We supply perfect overseas service. We shall send engineers to overseas for machine installation and commissioning and test production guide, and also training to the workers of the buyer. And we are ready to give technical support anytime.
